Composition

Semantics

Since effect composition is rather complicated we'd like to elaborate its workings using pseudo code here.

From a high level perspective the GLSL/HLSL shader stages can be seen as functions

1:
2:
3:
4:

type VertexShader           = Vertex -> Vertex
type TessellationShader     = Primitive<Vertex> -> seq<Primitive<Vertex>>
type GeometryShader         = Primitive<Vertex> -> seq<Primitive<Vertex>>
type FragmentShader         = Fragment -> Fragment

As we see the first three stages (Vertex, Geometry and Tessellation) work on spatial vertices and the fragment shader operates on per-fragment data.

lets define some compose operators for these pseudo-shaders defining the composition semantics.

 1:
 2:
 3:
 4:
 5:
 6:
 7:
 8:
 9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:

let composeVertexVertex (l : VertexShader) (r : VertexShader) : VertexShader =
    // simply apply the right shader to the outputs of the left one
    l >> r

let composeTessellationVertex (l : TessellationShader) (r : VertexShader) : TessellationShader =
    // apply the VertexShader to all vertice of all outputs of the TessellationShader
    l >> Seq.map (Primitive.map r)

let composeGeometryVertex (l : GeometryShader) (r : VertexShader) : GeometryShader =
    // apply the VertexShader to all vertice of all outputs of the GeometryShader
    l >> Seq.map (Primitive.map r)

let composeGeometryGeometry (l : GeometryShader) (r : GeometryShader) : GeometryShader =
    // apply the right shader to all primitives produced by the left one
    l >> Seq.collect r

let composeFragmentFragment (l : FragmentShader) (r : FragmentShader) : FragmentShader =
    // simply apply the right shader to the outputs of the left one
    l >> r

Based on these compositions we can now define compositions for tagged Shaders which will be helpful when implementing effect compositions below.

 1:
 2:
 3:
 4:
 5:
 6:
 7:
 8:
 9:
10:
11:
12:
13:
14:

type Shader =
    | Vertex of VertexShader
    | Tessellation of TessellationShader
    | Geometry of GeometryShader
    | Fragment of FragmentShader

let composeShader (l : Shader) (r : Shader) =
    match l, r with
        | Vertex l,         Vertex r    -> composeVertexVertex l r |> Vertex
        | Tessellation l,   Vertex r    -> composeTessellationVertex l r |> Tessellation
        | Geometry l,       Vertex r    -> composeGeometryVertex l r |> Geometry
        | Geometry l,       Geometry r  -> composeGeometryGeometry l r |> Geometry
        | Fragment l,       Fragment r  -> composeFragmentFragment l r |> Fragment
        | _                             -> failwith "composition not possible"

Since Vertex, Tessellation and Geometry work on primitives (or vertices) we refer to them as PrimitiveShader.

With these tools at hand we can now define the effect composition operator.

 1:
 2:
 3:
 4:
 5:
 6:
 7:
 8:
 9:
10:
11:
12:
13:
14:
15:
16:
17:
18:
19:
20:
21:
22:
23:
24:
25:
26:
27:
28:
29:
30:
31:
32:
33:
34:
35:
36:
37:
38:
39:
40:
41:
42:
43:
44:
45:
46:
47:
48:
49:
50:
51:
52:
53:
54:
55:
56:
57:
58:
59:
60:
61:
62:
63:
64:
65:

type PrimitiveShader =
    {
        vertex          : Option<VertexShader>
        tessellation    : Option<TessellationShader>
        geometry        : Option<GeometryShader>
    }

type Effect =
    {
        primitive       : PrimitiveShader
        fragment        : Option<FragmentShader>
    }

let composePrimitive (l : PrimitiveShader) (r : PrimitiveShader) : PrimitiveShader =
    // apply all shaders in the order
    // [l.vertex; l.tessellation; l.geometry; r.vertex; r.tessellation; r.geometry]
    // using the compose functions defined above and fail if an impossible constellation
    // arises (e.g. composeTessellationTessellation would be needed)

    let shaders (p : PrimitiveShader) =
        [
            match p.vertex with | Some s -> yield Vertex s | None -> ()
            match p.tessellation with | Some s -> yield Tessellation s | None -> ()
            match p.geometry with | Some s -> yield Geometry s | None -> ()
        ]

    let withShader (s : Shader) (p : PrimitiveShader) =
        match s with
            | Geometry gs       -> { p with geometry = Some gs }
            | Tessellation ts   -> { p with tessellation = Some ts }
            | Vertex vs         -> { p with vertex = Some vs }
            | _                 -> p

    match l with
        | { geometry = Some lg } ->
            l |> withShader (r |> shaders |> List.fold composeShader (Geometry lg))

        | { tessellation = Some lt } ->
            l |> withShader (r |> shaders |> List.fold composeShader (Tessellation lt))

        | { vertex = Some lv } ->
            l |> withShader (r |> shaders |> List.fold composeShader (Vertex lv))

        | _ ->
            r

[<CompilationRepresentation(CompilationRepresentationFlags.ModuleSuffix)>]
module Effect =

    let empty =
        {
            primitive = { vertex = None; tessellation = None; geometry = None }
            fragment = None
        }

    let compose2 (l : Effect) (r : Effect) =
        {
            primitive =
                composePrimitive l.primitive r.primitive

            fragment =
                match l.fragment, r.fragment with
                    | o, None | None, o -> o
                    | Some l, Some r -> Some (composeFragmentFragment l r)
        }

As we see here Effect.compose2 treats primitive- and fragment-shaders separately and ensures ordering only inside the primitive-stage. Arguably the composition could simply fail if called like Effect.compose2 { fragment = Some f } { primitive = <non-empty> } but we decided to keep it as flexible as possible.

Neutral Element

Effect.empty poses as the neutral element for Effect.compose2 which can easily be seen by looking at the code. Therefore Effect.compose2 Effect.empty a = a and Effect.compose2 a Effect.empty = a hold.

Associativity

Since Effect.compose2 resembles function composition (>>) it obviously inherits its associativity. Therefore Effect.compose2 a (Effect.compose2 b c) = Effect.compose2 (Effect.compose2 a b) c holds.

Note that it is not commutative which means Effect.compose2 a b <> Effect.compose2 b a and also not idempotent meaning Effect.compose a a <> a.

These properties motivate the combinator

1:
2:

    let compose (effects : seq<Effect>) : Effect =
        effects |> Seq.fold compose2 empty

Realworld

Real FShade Effects do not provide simple functions but instead contain Shaders for some of the stages. Since these Shaders are not required to have matching inputs/outputs implementing the composition gets a bit more tedious.

From a high-level point of view FShade's Shaders can be seen as modules with an arbitrary number of inputs and outputs which are semantically tagged using a name.

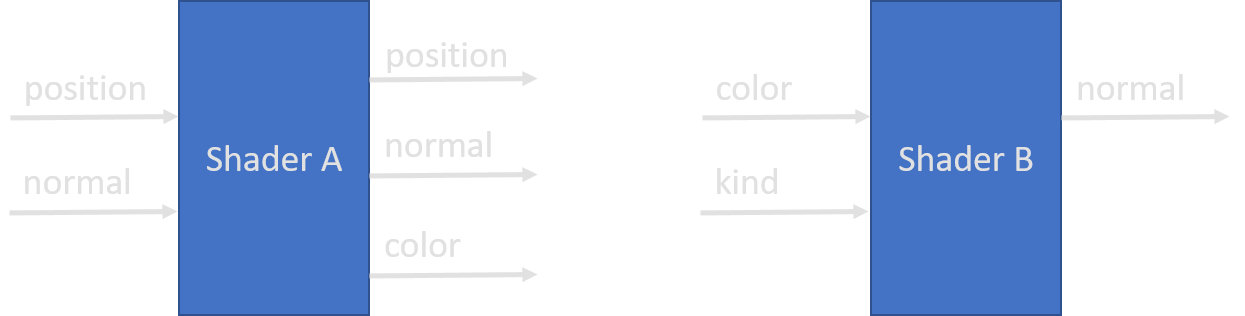

Consider composing the following shaders

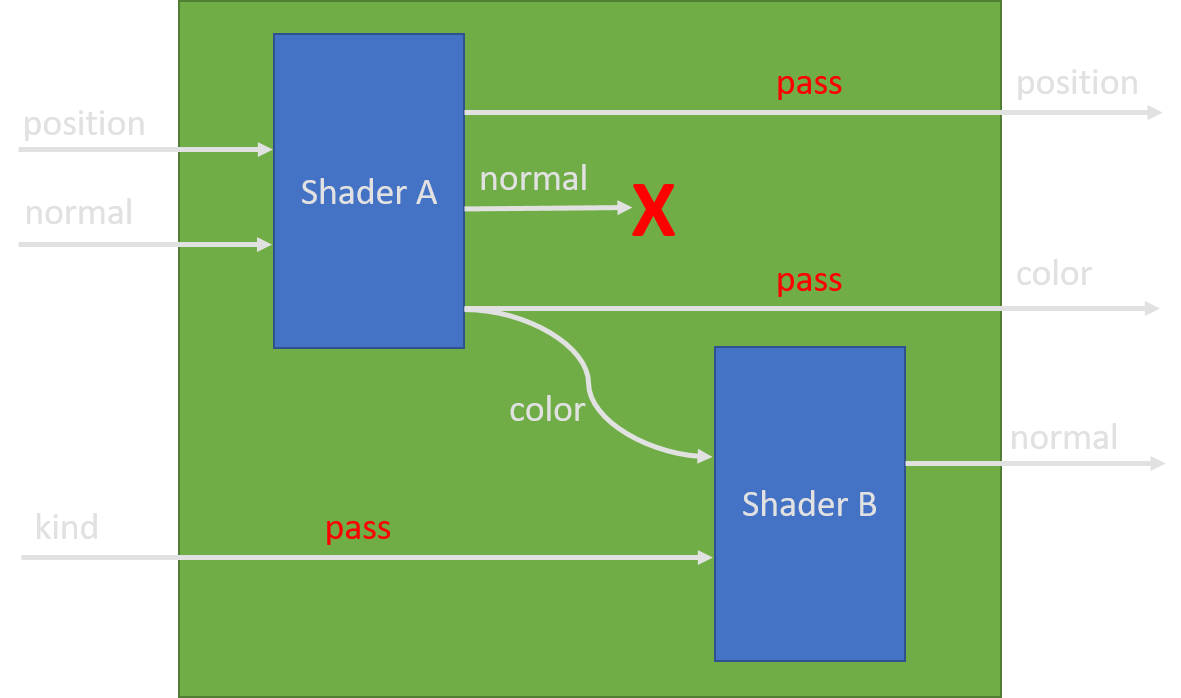

FShade composes these in the following way

As you see in the illustration we need to be able to pass values through shaders which is rather simple for the vertex/fragment stages but hard for geometry and tessellation.

In order to pass values through tessellation shaders we simply interpolate them using the given domain when possible. (more on that in Tessellation)

For geometry shaders the passing cannot be implemented unless the input-primitives are Point<'a> or the user provides hints for the passing. This is done via the [<SourceVertexIndex>] attribute which is discussed in detail in Geometry.
